Description
Tough. Clean. Solid.

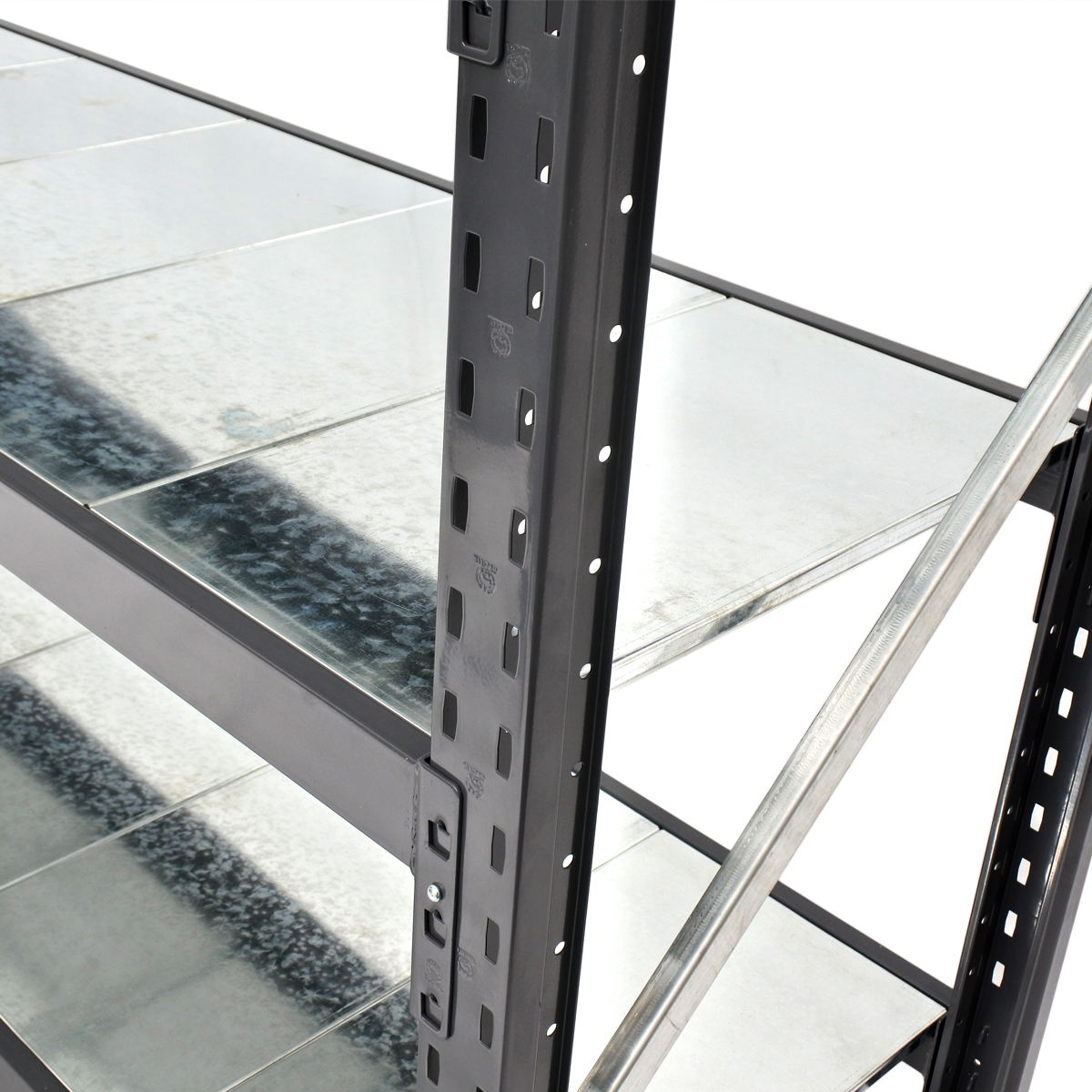

This 460D x 300mm galvanised deck is a compact, corrosion-resistant steel insert made for 460mm deep Longspan shelving systems.
A perfect alternative to chipboard, it’s ideal for humid or fire-sensitive environments and is easily cleaned from spills.
Why choose galvanised panels?
-
✅ Strong: Supports up to 80kg UDL per panel
-
✅ Cleaner: Won’t trap dust or absorb moisture
-
✅ Fire safer: Complies with fire-sensitive warehouse zones
-
✅ Rust-resistant: Galvanised steel construction for long life
-
✅ Easy fit: Drop-in installation between beams
Ideal for cool rooms, food-grade warehouses, or high-hygiene industrial shelving applications.
🔧 Product Details
| Attribute | Value |
|---|---|
| Nominal Size | 460mm (D) x 300mm (L) |
| Actual Size | 415mm (D) x 298mm (L) |
| Depth Compatibility | Fits 460mm deep Longspan shelving only |
| Material | Galvanised steel |
| Load Rating (UDL) | 80kg per panel |
| Installation | Drop-in – no tools required |
🧮 Gal Deck Panel Requirements by Beam Length
Each panel = 298mm width.
Use this table to determine how many are required for your shelf:
| Beam Length | Panels Required | Total Capacity (80kg per panel) |
|---|---|---|
| 900mm | 3 panels | 240 kg |
| 1200mm | 4 panels | 320 kg |
| 1500mm | 5 panels | 400 kg |
| 1800mm | 6 panels | 480 kg |
| 2100mm | 7 panels | 560 kg |
| 2400mm | 8 panels | 640 kg |
⚠️ Check your beam rating to ensure it supports the combined panel load. Panels drop in between beams — no tools or trimming required.
