Description
Tough. Clean. Solid.

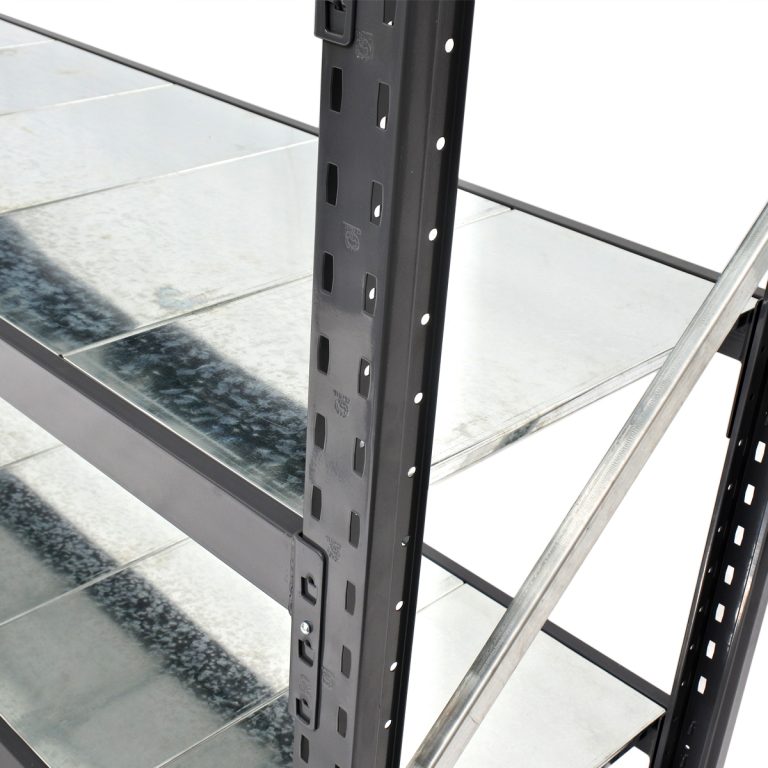

This 900D x 300mm galvanised deck is a corrosion-resistant steel insert for 900mm deep Apex Longspan shelving systems.
A clean, strong, and fire-safe alternative to chipboard, it’s ideal for deep bays, cool rooms, or hygiene-sensitive environments.
Why choose galvanised panels?
-
✅ Strong: Rated to 55kg UDL per panel
-
✅ Cleaner: No dust absorption, moisture resistance, easy to wipe
-
✅ Fire safer: Non-combustible, ideal for compliance
-
✅ Durable: Galvanised finish resists corrosion and wear
-
✅ Easy install: Drop-in panel, sits between beams with no tools
Perfect for food-grade storage, pharmaceuticals, deep carton picking, or warehouse areas needing cleanliness and fire performance.
🔧 Product Details
| Attribute | Value |
|---|---|
| Nominal Size | 900mm (D) x 300mm (L) |
| Actual Size | 858mm (D) x 298mm (L) x 1.2mm thick |
| Depth Compatibility | Fits 900mm deep Longspan shelving only |
| Material | Galvanised steel |
| Load Rating (UDL) | 55kg per panel |
| Installation | Drop-in – sits between beams |
🧮 Gal Deck Panel Requirements by Beam Length
Each panel = 298mm wide.
Use this table to determine how many are required per shelf:
| Beam Length | Panels Required | Total Capacity (55kg per panel) |
|---|---|---|
| 900mm | 3 panels | 165 kg |
| 1200mm | 4 panels | 220 kg |
| 1500mm | 5 panels | 275 kg |
| 1800mm | 6 panels | 330 kg |
| 2100mm | 7 panels | 385 kg |
| 2400mm | 8 panels | 440 kg |
⚠️ Always confirm your beam rating supports the combined load. These galvanised panels drop in between the front and rear beams with no tools or trimming required.
